| Current | 20A |
|---|---|
| Voltage | 60V |
| Wattage | 1000 ～ 1500W |

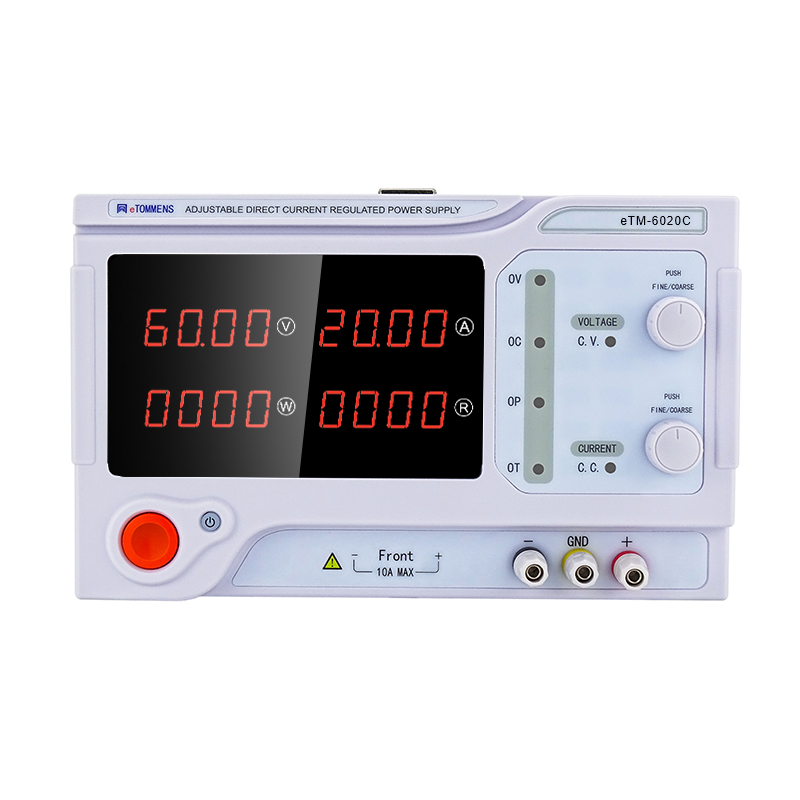

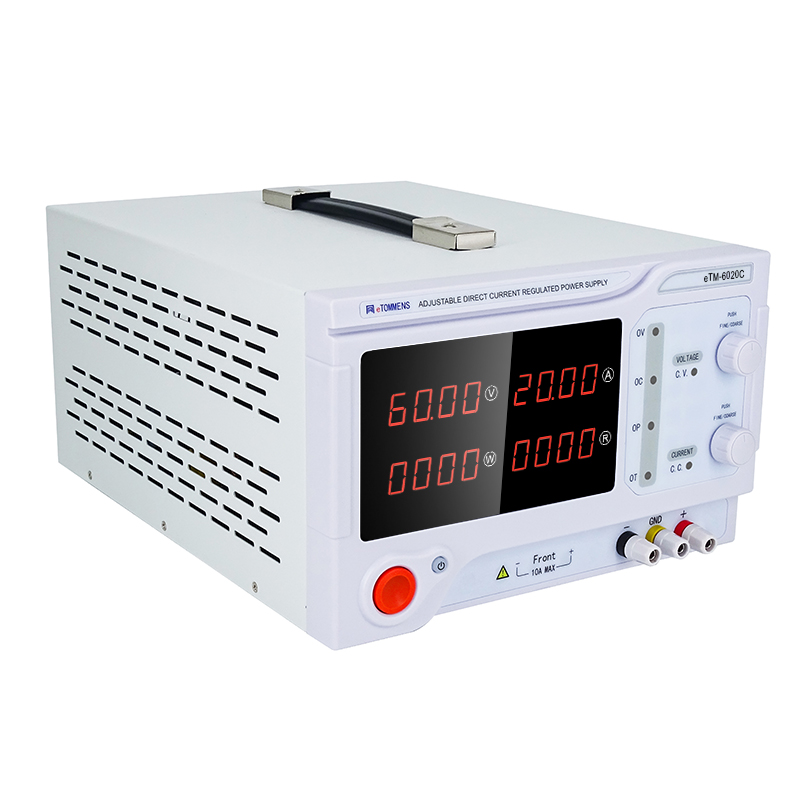

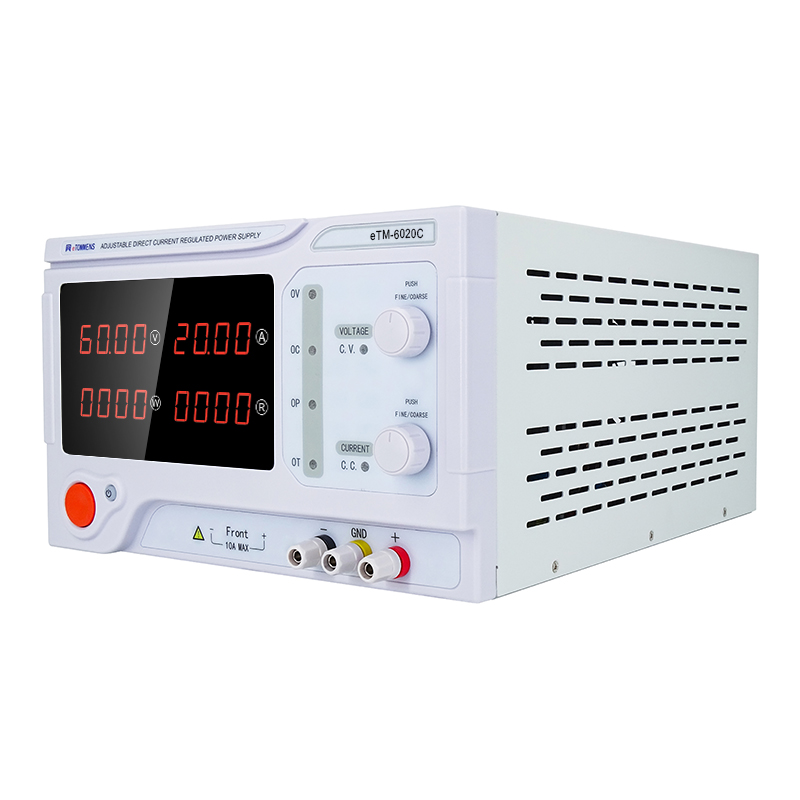

eTM-6020C, 2-Kob High Power Switching DC Bench Power Supply Variable 60V 20A with Encoder Knob, RS232/485/USB (Optional) Interface, Multiple Protections
Original price was: $ 899.00.$ 549.00Current price is: $ 549.00.
Voltage and current can be preconfigured
4-Digit LED display
ON/OFF unique switch
Rear SENSE compensation interface (optional)
Support powerful protection functions including overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: programmable
Low noise and low ripple
Automatic carry of the decimal point
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)
Intelligent temperature control fan
Standard configuration: power cord, certificate, output terminal, AC voltage 220V (110V optional below 1200W)
Additional information
Product Paramenters
Product Paramenters
| Moder | eTM-6020C |
| Input Voltage | AC 220V + 10% (Optional below 1200W: Fixed AC110V input ) |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | Constant voltage value range: 0-60V, continuously adjustable |
| Output Current | Constant current value range: 0-20A, continuously adjustable |
| Way of Working | Automatic switching between constant voltage and constant current mode |
| Display Resolution | Four-digits display: voltage 10mV, current 10mA |
| Setting Accuracy | Voltage: 0.1V Current: 0.1A |
| Ripple & Noise | ≤1% (valid values) |
| Protective Function | Overvoltage Protection, Overcurrent Protection, Overpower Protection, Overtemperature Protection, and Short Circuit Protection |
| Working Environment | Temperature: 5-40 celsius Relative Humidity: <80% |
| Storage Environment | Temperature: 5-30 celsius Relative Humidity: <60% |
| Height above Sea Level | ≤2000m |
| Dimension | 330*250*155mm (Length*Width*Height)mm |
| Weight | 10KG |
| Category | 60V DC Power Supply, 20A DC Power Supply |
