| Weight | 6.5 kg |
|---|---|
| Dimensions | 42 × 31 × 22 cm |
| Current | 3A, 5A |
| Voltage | 100V, 160V |
| Wattage | 300 ～ 900W |

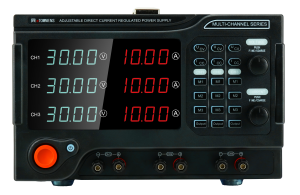

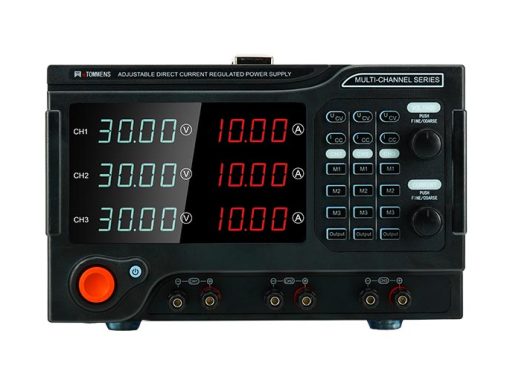

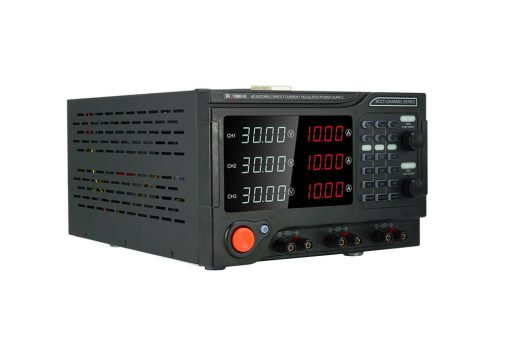

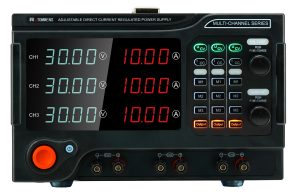

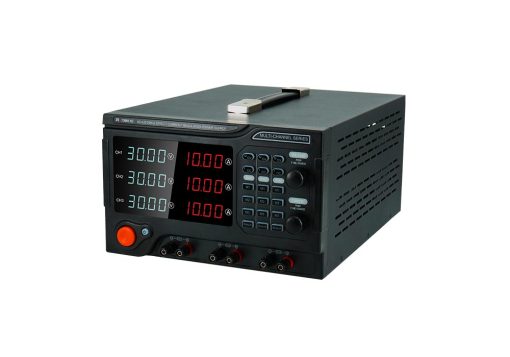

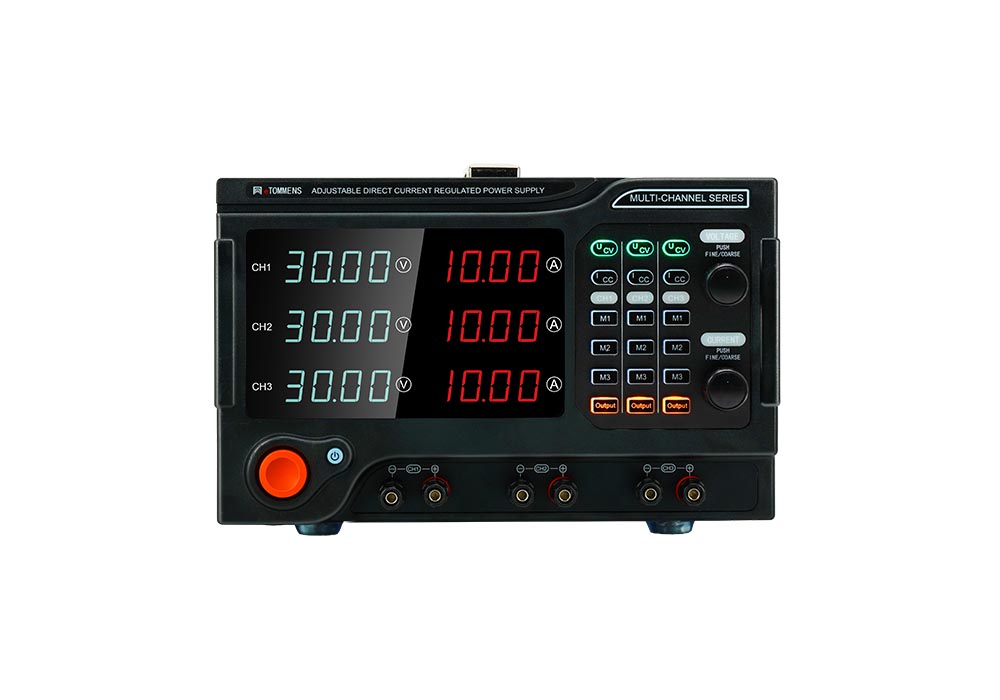

eTM-DM-FKF, Triple Output Bench DC Power Supply 100V/3A, 160V/5A, 100V/3A with 4-Digits Display, CV/CC Mode Automatic Conversion, RS232/485/USB (Optional) Port
Original price was: $ 1,149.00.$ 699.00Current price is: $ 699.00.
Composed of 3 groups of adjustable modular power supplies, Can be matched with 3 groups of different voltage and current, Improve research efficiency
Four-digit LED displays voltage, current, output power and equivalent impedance intuitively
Encoding switch digital control output value, convenient and durable
Equipped with over-voltage protection, over-current protection, over-power protection, over-temperature protection, and short circuit protection
One-button output control On/Off

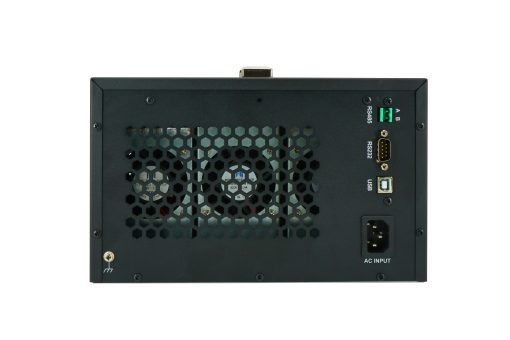

Standard configuration of RS232, RS485 and USB communication serial ports, supporting MODBUS RTU protocol, achieving automated control
Standard accessories: power cord, certificate of compliance, 3 clamp wires, 3-in-1 communication ports (RS232, RS485, USB), AC input voltage 220V (optional 110V).
For customized models, please click here
Additional information
Product Paramenters
Product Paramenters
| Model | eTM-DM-FKF(Customized models need detailed parameters please contact by mail） |
| Power Supply Type | Three power supply modules freely selectable; Energy Saving Switching Power Supply |
| Input Voltage | AC 220V + 10% (Optional: Fixed AC110V Input ) |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | Three adjustable voltages: 0-100V, 0-160V, 0-100V |
| Output Current | Three adjustable currents: 0-3A, 0-5A, 0-3A |
| Adjustable Power Module Parameters | A:15V2A B:15V5A C:30V5A D:30V10A E:60V5A F:100V3A G:15V20A H:150V2A I:40V20A J:80V10A K:160V5A |
| Way of Working | Automatic switching of constant voltage and constant current mode |
| Display Resolution | Four-digits display: voltage 0.1V, current 1mA |
| Setting Accuracy | Voltage: ≤0.1%+5digits Current: ≤0.2%+10digits |
| Ripple | Voltage: ≤18mVrms Current: ≤18mArms |
| Protective Function | Over-voltage Protection, Over-current Protection, Over-power Protection, Over-temperature Protection, and Short Circuit Protection |
| Working Environment | Temperature: -10-40 celsius Relative Humidity: ≤80% |
| Storage Environment | Temperature: -20-80 celsius Relative Humidity: ≤80% |
| Height above Sea Level | ≤2000m |
| Dimension | 330*250*155mm (Length*Width*Height)mm |
| Weight | About 6KG |
| Category | Triple Output Power Supply |
