| Current | 100A |
|---|---|
| Voltage | 30V |
| Wattage | 1500 ～ 3000W |

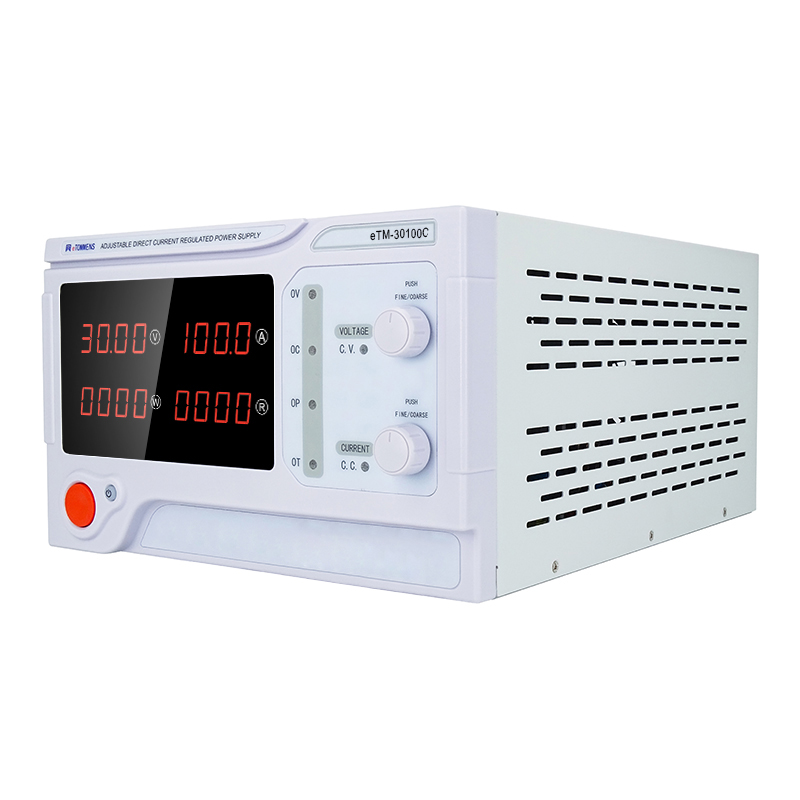

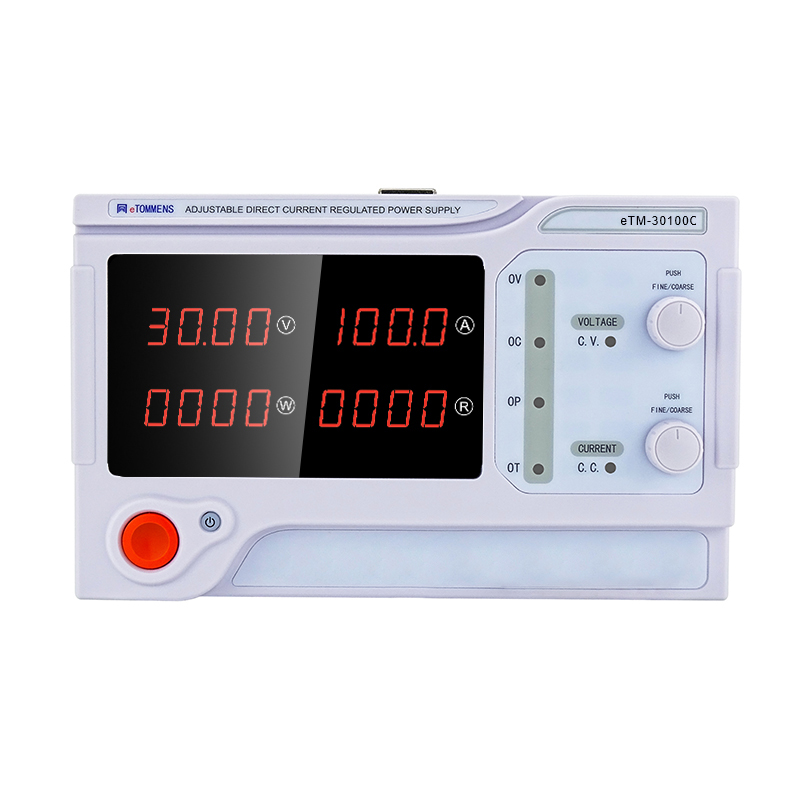

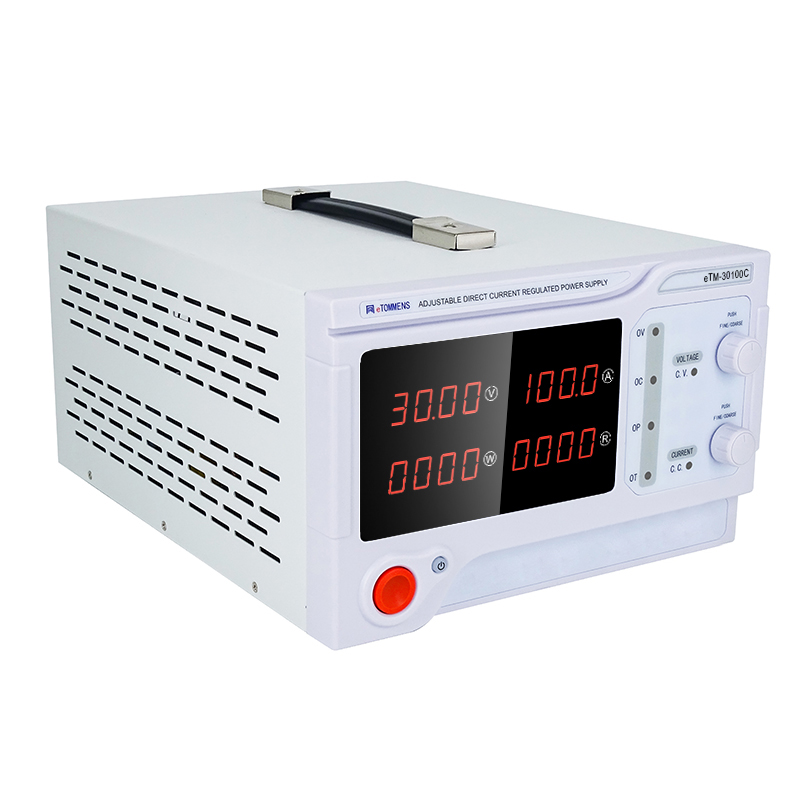

eTM-30100C 30V 100A Variable Bench DC Power Supply
Original price was: $ 2,499.00.$ 1,099.00Current price is: $ 1,099.00.
Adjustable 0–30V output and 0–100A current control for high-current DC equipment and test fixtures, with low ripple and noise, CV/CC operation and optional programmable interfaces.
- Low noise and low ripple
- Preset voltage and current before enabling the output
- Four-digit LED display with automatic decimal-point positioning
- Two-knob encoder adjustment and independent output on/off button
- Automatic constant-voltage / constant-current operation
- Overvoltage, overcurrent, overpower, overtemperature and short-circuit protection
- Dual-frequency switching technology and temperature-controlled cooling fan
- Optional rear SENSE compensation and external trigger
- Optional RS232, RS485 or USB interface for programmable control
- Power cord, certificate and output terminal included; output leads selected separately
- 220–240V AC input; listed 110–130V option limited to 1200W output
Choose your AC input, output leads and control options, then order online.
Additional information
Product Paramenters
Product Paramenters
| Model | eTM-30100C |
| Input Voltage | AC 220V + 10% (Optional below 1200W: Fixed AC110V input) |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | Constant voltage value range: 0-30V, continuously adjustable |
| Output Current | Constant current value range: 0-100A, continuously adjustable |
| Way of Working | Automatic switching between constant voltage and constant current mode |
| Display Resolution | Four-digits display: voltage 10mV, current 100mA |
| Setting Accuracy | Voltage: 0.1V Current: 0.1A |
| Ripple & Noise | ≤1% (valid values) |
| Protective Function | Overvoltage Protection, Overcurrent Protection, Overpower Protection, Overtemperature Protection, and Short Circuit Protection |
| Working Environment | Temperature: 5-40 celsius Relative Humidity: <80% |
| Storage Environment | Temperature: 5-30 celsius Relative Humidity: <60% |
| Height above Sea Level | ≤2000m |
| Dimension | 410*250*155mm (Length*Width*Height)mm |
| Weight | 10KG |
Product Description
Product Description
30V 100A adjustable DC power for high-current test benches
The eTM-30100C pairs a continuously adjustable 0–30V output with a current setting up to 100A. It is a high-current bench supply for low-voltage DC equipment and test fixtures, with encoder adjustment, voltage/current presets and optional RS232, RS485 or USB communication.
Set the output before powering the load
Preset voltage and current, then use the dedicated on/off button to enable the output. The four-digit LED display shows the operating values. Automatic CV/CC transition supports voltage-controlled operation and current limiting as the load changes.
- Low noise and low ripple
- Separate voltage and current adjustment with encoder controls
- Overvoltage, overcurrent, overpower, overtemperature and short-circuit protection
- Temperature-controlled cooling fan
- Optional SENSE compensation, external trigger and computer interfaces
eTM-30100C specifications
| Output voltage | 0–30V, continuously adjustable |
|---|---|
| Current setting | 0–100A, continuously adjustable |
| Operating modes | Constant voltage / constant current, automatic transition |
| Display | Four-digit LED with automatic decimal-point positioning |
| Display resolution: voltage / current | 10mV / 100mA |
| Cooling | Temperature-controlled fan |
| Enclosure dimensions | 410 × 250 × 155mm |
| Weight | 10kg |
Connections and control options
Use the front-panel controls for local operation, or select an optional RS232, RS485 or USB interface for a computer-connected setup. Optional SENSE compensation measures voltage at the load connection; an external trigger option is also available.
| Requirement | Configuration |
|---|---|
| Manual bench operation | Encoder voltage/current controls, presets and output on/off button |
| Computer control | Optional RS232, RS485 or USB; choose the interface in the serial-port selector |
| Load-side voltage sensing | Optional SENSE compensation |
| External control | Optional external trigger; RS232 with analogue control module is also listed in the selector |
| Output wiring | Select output leads for the operating current; leads are a separate option |
Applications for the eTM-30100C
DC equipment and current-limit testing
Power DC assemblies that require substantial current at voltages up to 30V. Adjust the supply voltage to match each test point and set the current limit for the connected equipment. Include startup demand when sizing the test setup.
Cable and connector test fixtures
Use controlled DC current as the source in a cable or connector test fixture, with separate instruments measuring voltage drop and temperature. Match the cable, terminals and fixture to the intended current and duty cycle.
Remote fixtures and automated benches
High current makes output-lead resistance especially relevant. Optional SENSE compensation supports voltage sensing at the load connection, while an optional serial or USB interface connects the supply to a test computer.
Choose your configuration
For manual bench work, use the front-panel controls. For a computer-connected setup, select the required communication interface. Choose output leads for the current and installation, and add SENSE compensation where voltage drop at the fixture is a concern.
Select the available options above and order online. For a configuration that is not listed, use the product’s Get Quote or WhatsApp option.
Low ripple, protection and cooling
Low-noise, low-ripple output supports DC bench work where supply disturbances matter. The switching design uses dual-frequency technology, with a temperature-controlled fan for cooling. Overvoltage, overcurrent, overpower, overtemperature and short-circuit protection are built in.
For sustained-load testing, provide clear ventilation and use output wiring suited to the load current. Keep the setup within the electrical and environmental operating limits.
Bench space and supplied accessories
The enclosure measures 410 × 250 × 155mm and weighs 10kg. Allow room behind the supply for cooling and cable connections. A power cord, certificate and output terminal are included; choose output leads and optional control interfaces with your order.
eTM-30100C FAQs
Does a 100A power supply force 100A into my equipment?
No. In constant-voltage operation, the load draws the current it needs. The current setting acts as a limit; when that limit is reached, the supply transitions to constant-current operation. Set the limit to suit the equipment and use wiring rated for the intended current.
Are RS485 and USB included as standard?
Communication interfaces are optional. Choose RS232, RS485 or USB in the serial-port selector; the default selection is without these interfaces. Match the selected interface and command support to your test software.
When is the SENSE option useful?
SENSE compensation is useful when resistance in the output leads causes a voltage drop at the load. Select the SENSE option for load-side voltage sensing, and keep the power leads suitable for the operating current.
Does this model have low ripple and noise?
eTM-30100C includes low-noise, low-ripple output as a product feature. For a test with a specific ripple limit, compare the required measurement conditions with the product specification before selecting the configuration.
What should I select before ordering online?
Choose the AC input, output-lead option, SENSE or external trigger option, and communication interface above, then set the quantity and add the product to your cart. Output leads and communication interfaces are optional selections.
