| Weight | 15 kg |
|---|---|
| Dimensions | 62 × 52 × 26 cm |
| Wattage | 1000 ～ 1500W |
| Digits | 5 Digits |
| Current | 100A |

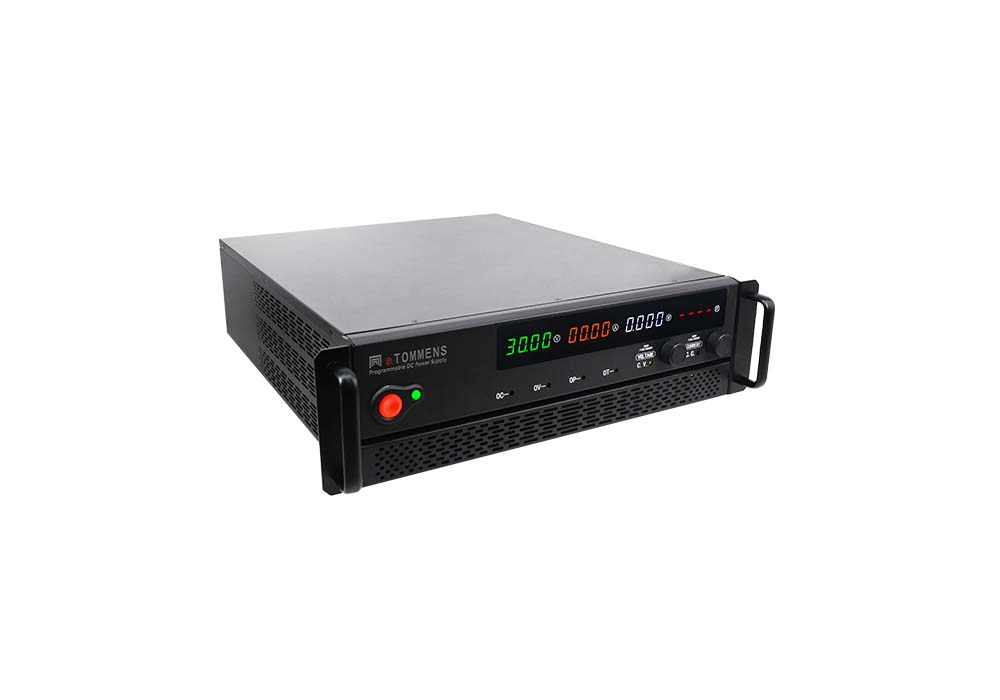

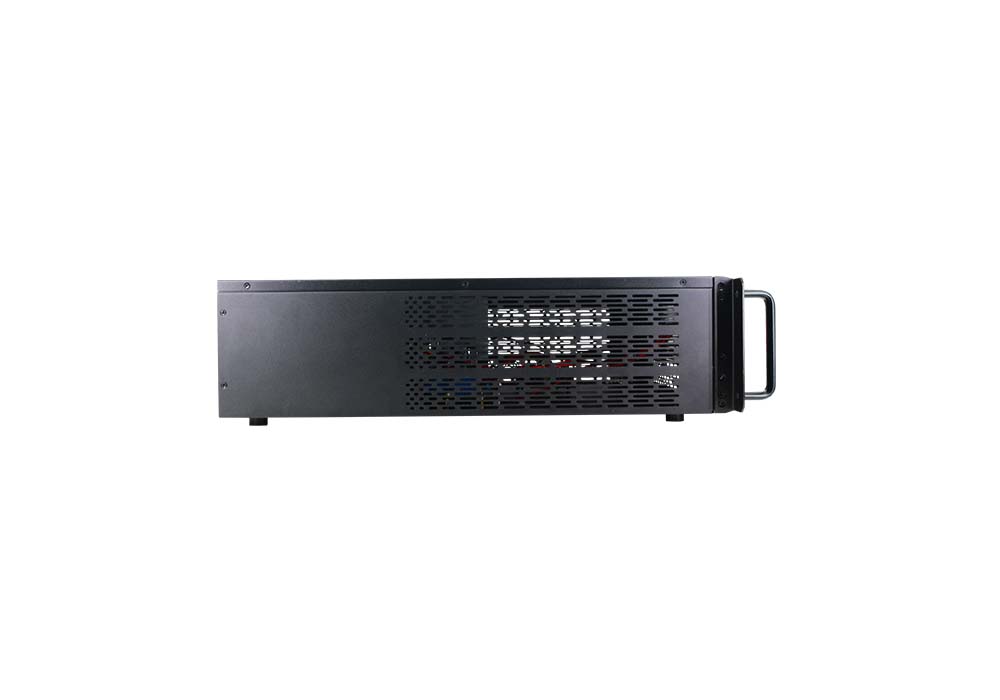

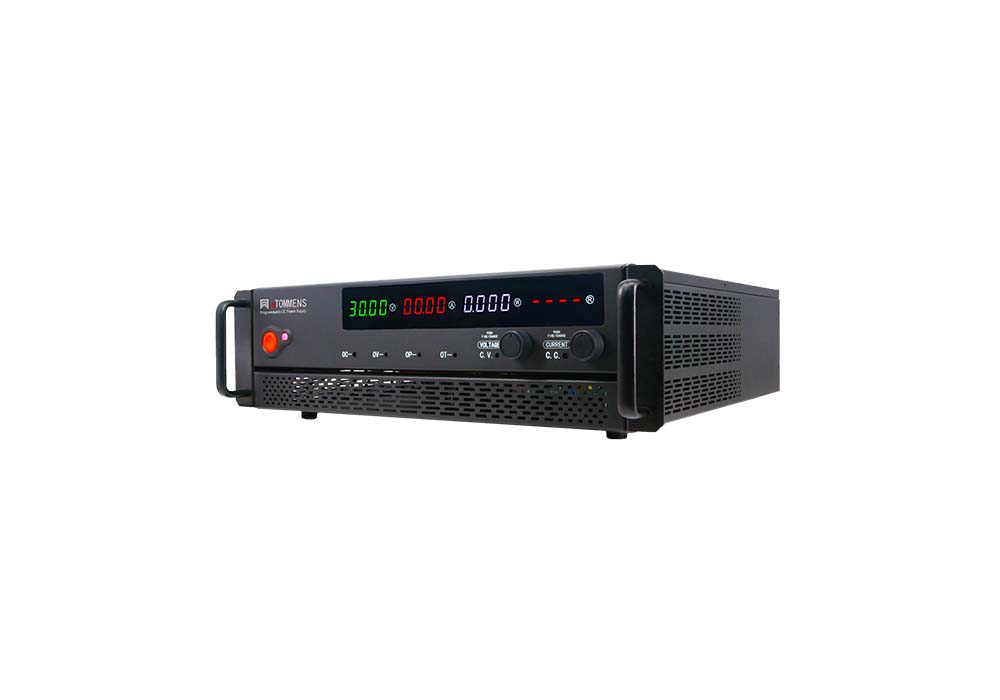

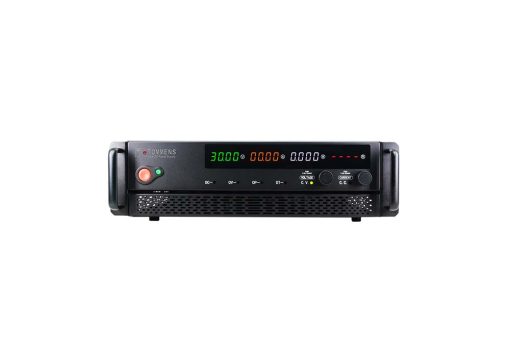

High Power Programmable DC Power Supply 15V/100A (eTM-15100U)
Original price was: $ 1,149.00.$ 759.00Current price is: $ 759.00.
Four-digit LED displays voltage, current, output power and equivalent impedance intuitively
Encoding switch digital control output value, convenient and durable
Equipped with Over-voltage protection, Over-current protection, Over-power protection, Over-temperature protection, and Short circuit protection
One-button output control On/Off
Standard configuration of RS232, RS485, and USB communication serial ports, supporting MODBUS RTU protocol, achieving automated control

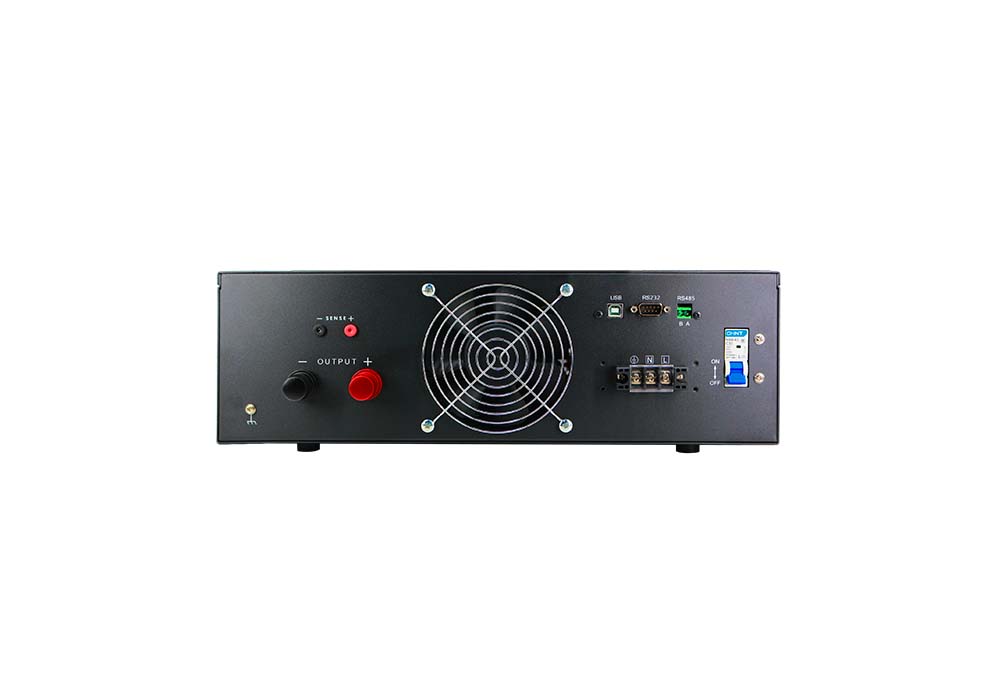

Standard accessories: power cord, certificate of compliance, user manual, SENSE compensation interface + wiring 4.0 terminal, 3-in-1 communication serial ports (RS232, RS485, USB), AC input voltage 220V (optional 110V for power below 2000W).
Additional information
Product Paramenters
Product Paramenters
| Model | eTM-15100U |
| Power Supply Type | Energy Saving Switching Power Supply |
| Input Voltage | AC 220V + 10% (Optional: Fixed AC110V input ) |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | Constant voltage value range: 0-15V, continuously adjustable |
| Output Current | Constant current value range: 0-100A, continuously adjustable |
| Way of Working | Automatic switching between constant voltage and constant current mode |
| Display Resolution | Four-digits display: voltage 10mV, current 100mA |
| Setting Accuracy | Voltage: 0.1V Current: 0.1A |
| Ripple & Noise | <1% (valid values) |
| Protective Function | Over-voltage protection, Over-current protection, Over-power protection, Over-temperature protection, and Short circuit protection |
| Working Environment | Temperature: 5-40 celsius Relative Humidity: <80% |
| Storage Environment | Temperature: 5-30 celsius Relative Humidity: <60% |
| Height above Sea Level | ≤2000m |
| Dimension | 540*430*130mm (Length*Width*Height)mm |
| Weight | 13KG |
Product Description
Product Description
