| Current | 2A |
|---|---|
| Voltage | 15V |
| Wattage | 0 ~ 300W |

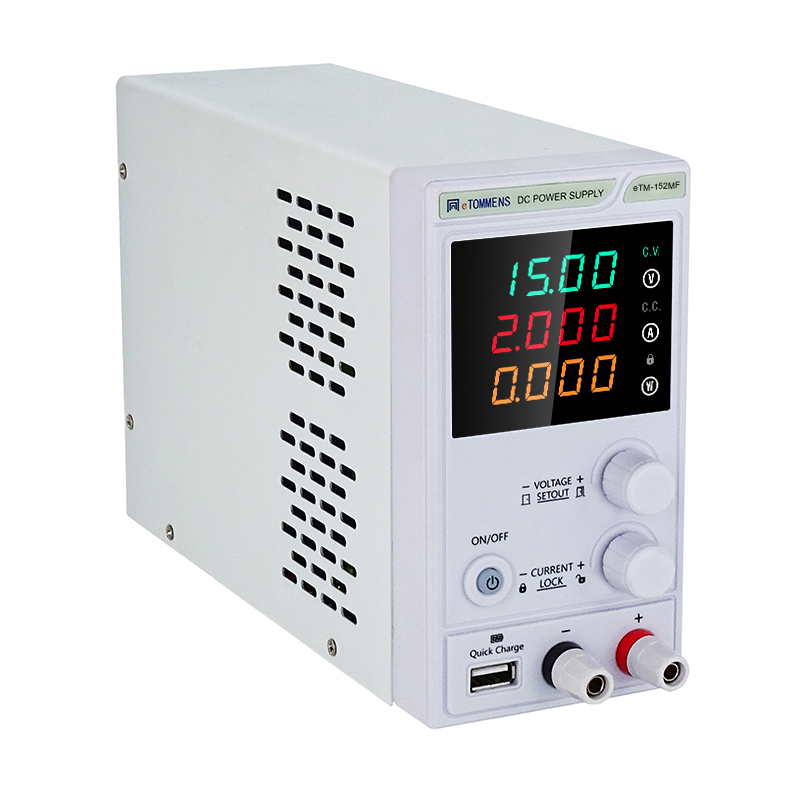

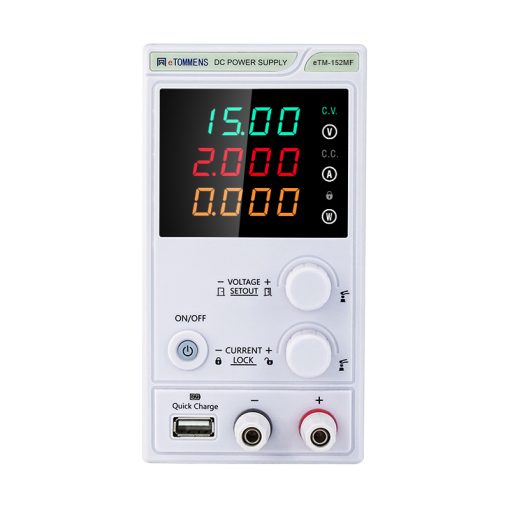

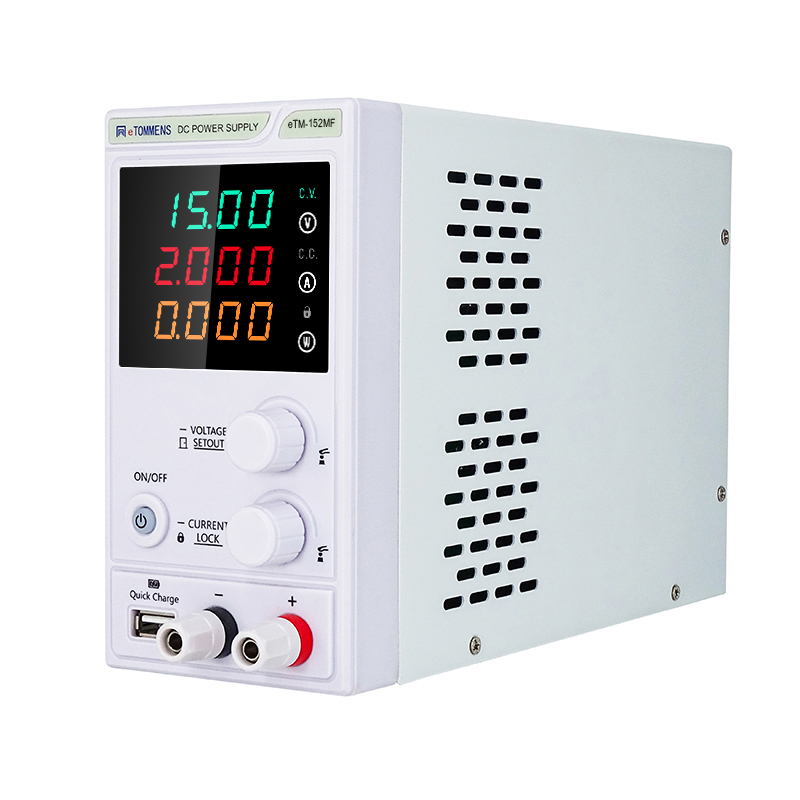

eTM-152MF, 0-15V 0-2A Switching Regulated DC Bench Power Supply Mini with 4-Dight LED Display, Quick Charge USB Port, Output Switch
Original price was: $ 459.00.$ 189.00Current price is: $ 189.00.
Voltage and current can be preconfigured
4-Digit LED display
ON/OFF unique switch
Support powerful protection functions including overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: On/Off/Read
Low noise and low ripple
Automatic carry of the decimal point
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)
Intelligent temperature control fan
Additional information
Product Paramenters
Product Paramenters
| Model | eTM-152MF |
| Input Voltage | AC 220V + 10% (Optional: Fixed AC110V input; or AC110V/220V Toggle Input ) |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | Constant voltage value range: 0-15V, continuously adjustable |
| Output Current | Constant current value range: 0-2A, continuously adjustable |
| Way of Working | Automatic switching between constant voltage and constant current mode |
| Display Resolution | Four-digits display: voltage 10mV, current 1mA |
| Setting Accuracy | Voltage: ≤0.1%+5digits Current: ≤0.2%+10digits |
| Ripple & Noise | Voltage: ≤10mVrms Current: ≤10mArms |
| Protective Function | Overvoltage Protection, Overcurrent Protection, Overpower Protection, Overtemperature Protection, and Short Circuit Protection |
| Working Environment | Temperature: 0-40 celsius Relative Humidity: ≤80% |
| Storage Environment | Temperature: -20-60 celsius Relative Humidity: ≤80% |
| Height above Sea Level | ≤2000m |
| Dmension | 80*150*230mm (Length*Width*Height)mm |
| Weight | 2KG |
| Category | Small Adjustable Power Supply |
