| Current | 10A |
|---|---|
| Voltage | 30V |
| Wattage | 0 ~ 300W |

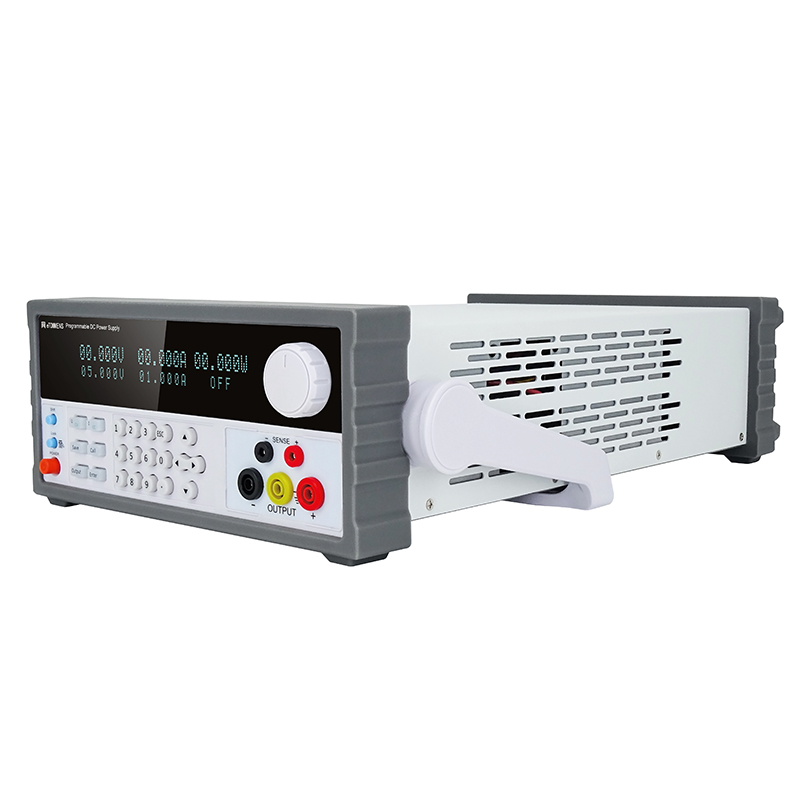

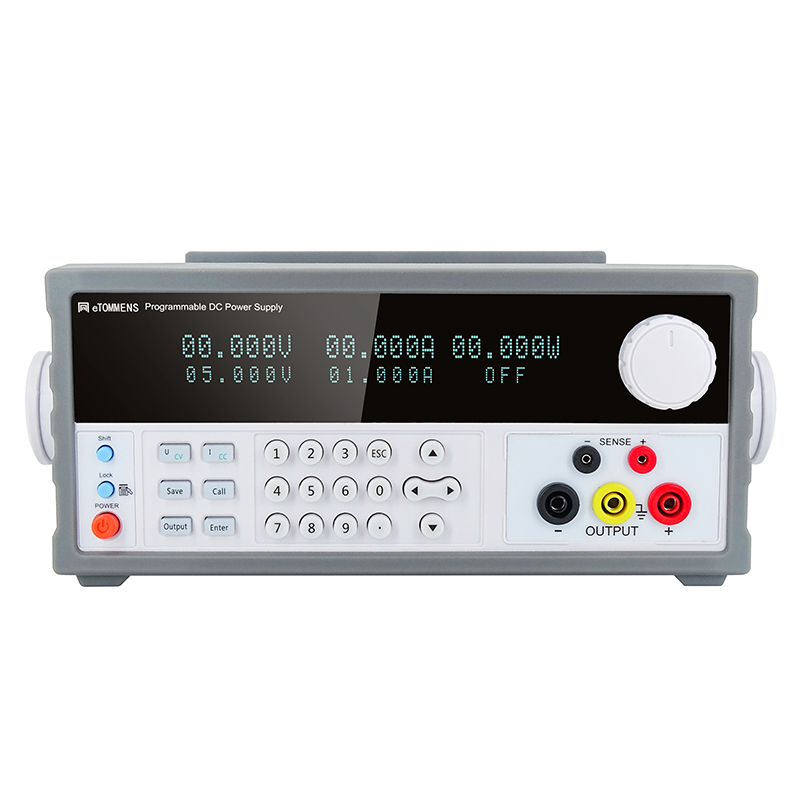

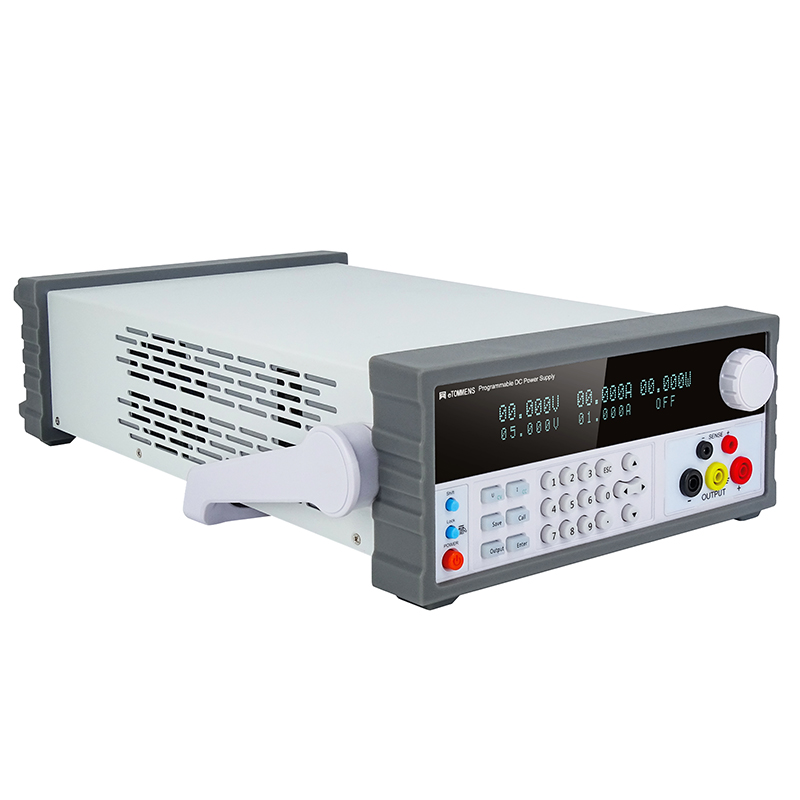

eTM-L3010SPV, High Precision DC Linear Power Supply Adjustable 30V 10A with 5-Digits VFD Display, Built-in Buzzer, One-Click Lock Key
Original price was: $ 789.00.$ 649.00Current price is: $ 649.00.

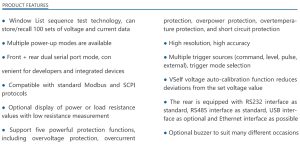

Window List sequence test technology, can store/recall 100 sets of voltage and current data
Multiple power-up modes are available
Front + rear dual serial port mode, convenient for developers and integrated devices
Compatible with standard Modbus and SCPI protocols
Optional display of power or load resistance values with low resistance measurement
Support five powerful protection functions including overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection
High resolution, high accuracy
Multiple trigger sources (command, level, pulse, external), trigger mode selection
VSelf voltage auto-calibration function reduces deviations from the set voltage value
The rear is equipped with RS232 interface as standard, RS485 interface as standard, USB interface as optional and Ethernet interface as possible
Optional buzzer to suit many different occasions
Standard configuration: power cord, certificate, wiring 2.0, 4.0 terminals, CD, communication serial port: default RS232, optional RS485 and USB, RNB5.5-8 terminals, output clip line, AC voltage 110V/220V switchable
Additional information

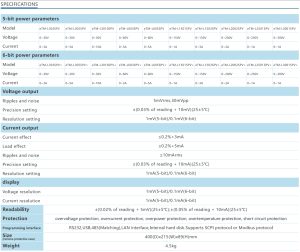

Product Paramenters
Product Paramenters
| Model | eTM-L3010SPV |
| Power Supply Type | Linear Power Supply |
| Input Voltage | AC110V/220V Toggle Input |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | Constant voltage value range: 0-30V, continuously adjustable |
| Output Current | Constant current value range: 0-10A, continuously adjustable |
| Way of Working | Automatic switching between constant voltage and constant current mode |
| Display Resolution | Five-digits display: voltage 1mV, current 1mA |
| Setting Accuracy | Voltage: ±(0.03% of reading + 10mV) (25±5℃) Current: ±(0.02% of reading+0.1% of FS)(25±5℃) |
| Ripple & Noise | Voltage: ≤1mVrms Current: ≤6mArms |
| Protective Function | Overload protection, Reverse polarity protection, Over-voltage protection, Over-current protection, Over-temperature protection |
| Working Environment | Temperature: 0-40 celsius Relative Humidity: ≤80% |
| Storage Environment | Temperature: -10-70 celsius Relative Humidity: ≤70% |
| Height above Sea Level | ≤2000m |
| Dimension | 352*215*89mm (Length*Width*Height)mm |
| Weight | 9KG |
| Category | 10A DC Power Supply |
Product Description
Product Description
