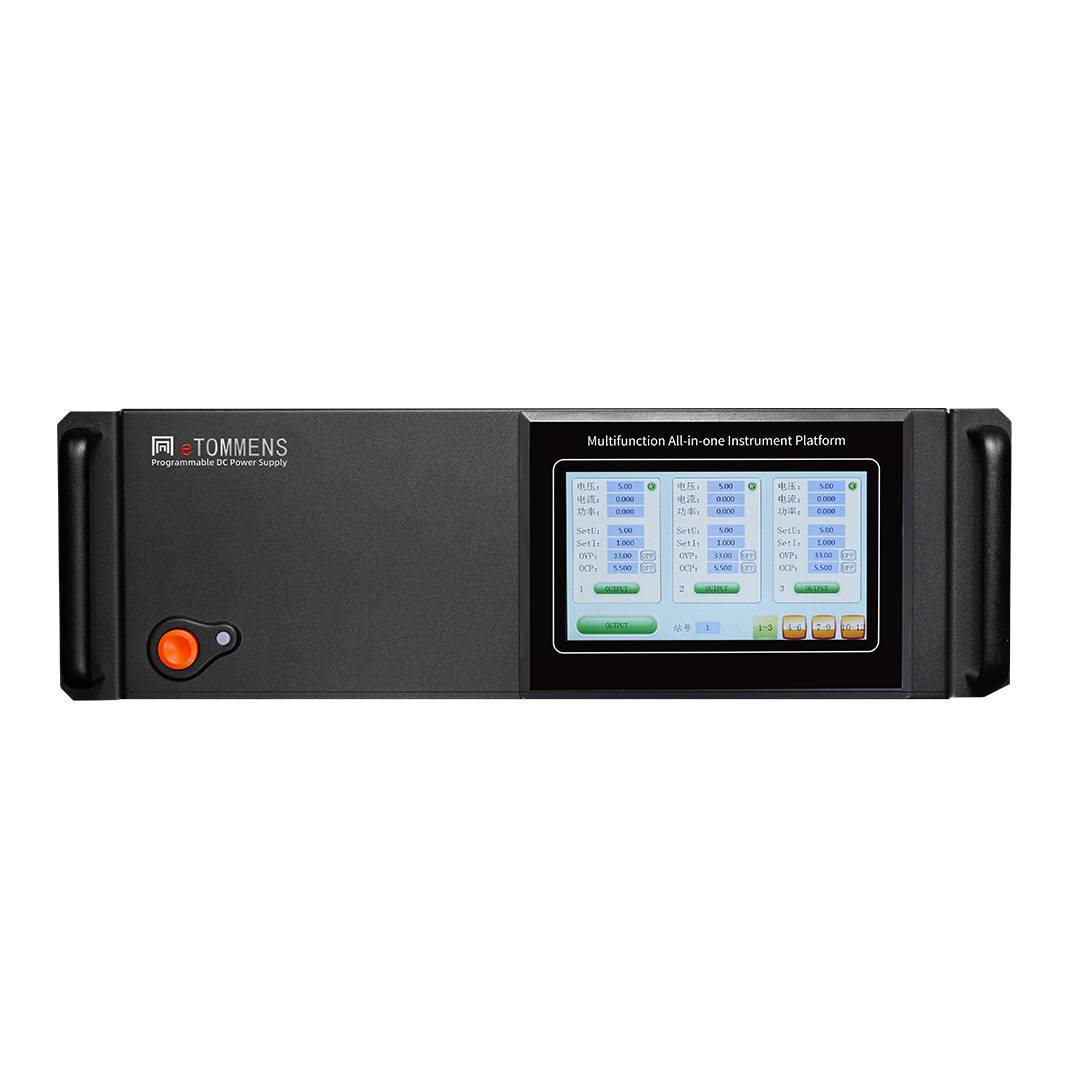

eTM-UM-10 High-Density Modular Multi-Channel Rack DC Power Supply (10-Channel)
Need this configuration?
Request a Quote for eTM-UM-10
Request a Quote for eTM-UM-10
High-density 19-inch modular rack DC supply for up to ten channels, with 15–150 V module options and RS485/RS232/USB control.
Description
Technical Specifications
Technical Specifications
| System Chassis | eTM-UM-10 (19-inch High Density) |
|---|---|
| Module Capacity | 10 Independent Isolated Channels |
| Module Selections | 15V/2A, 15V/5A, 30V/5A, 30V/10A, 60V/5A, 100V/3A and custom configurations |
| Remote Interface | RS232 / RS485 / USB central bus control |
Product Overview
Product Overview
UM-10 is a high-density 19-inch modular DC power supply for automated test racks, burn-in, aging arrays and multi-rail R&D benches. It supports up to ten independent channels with selectable modules and serial control.
Module configuration
| Module | Output | Power |
|---|---|---|
| A | 15 V / 2 A | 30 W |
| B | 15 V / 5 A | 75 W |
| C | 15 V / 20 A | 300 W |
| D | 30 V / 5 A | 150 W |
| E | 30 V / 10 A | 300 W |
| F | 60 V / 5 A | 300 W |
| G | 100 V / 3 A | 300 W |
| H | 150 V / 2 A | 300 W |
How to choose
- Define the number of independent outputs needed by the rack.
- Match every channel to its voltage, current and module power.
- Confirm RS485, RS232 or USB control and the required Modbus settings.
- Confirm input voltage, cooling and rack wiring before ordering.
Applications
- High-density automated test racks
- Multi-DUT functional testing
- Burn-in and aging equipment
- Laboratory systems with many independent outputs
FAQ
▶ How many channels can UM-10 hold?
The series is designed for up to ten channels; the exact channel count and module mix are confirmed in the quotation.
▶ Can different modules be mixed?
Yes. Select the module for each output requirement and ask us to confirm the complete configuration.
▶ Is 110 V input available?
The source sheet lists optional AC 110 V input, but it must be confirmed for the exact configuration.
▶ What should I include in an inquiry?
Include channel count, output voltage/current, module mix, communication interface, input voltage and destination.
