| Current | 3A |
|---|---|
| Voltage | 200V |
| Wattage | 300 ～ 900W |

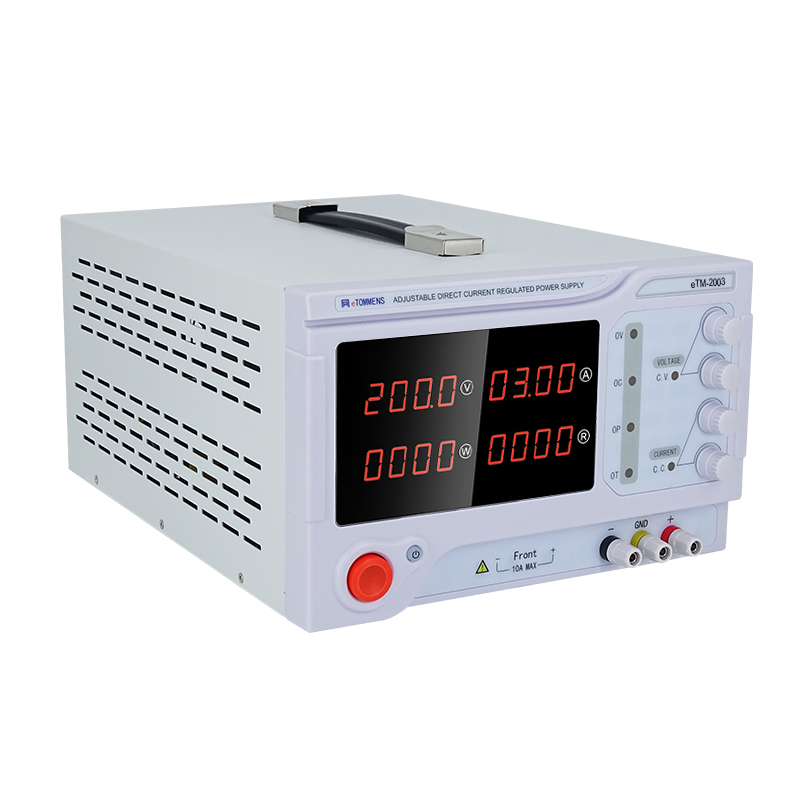

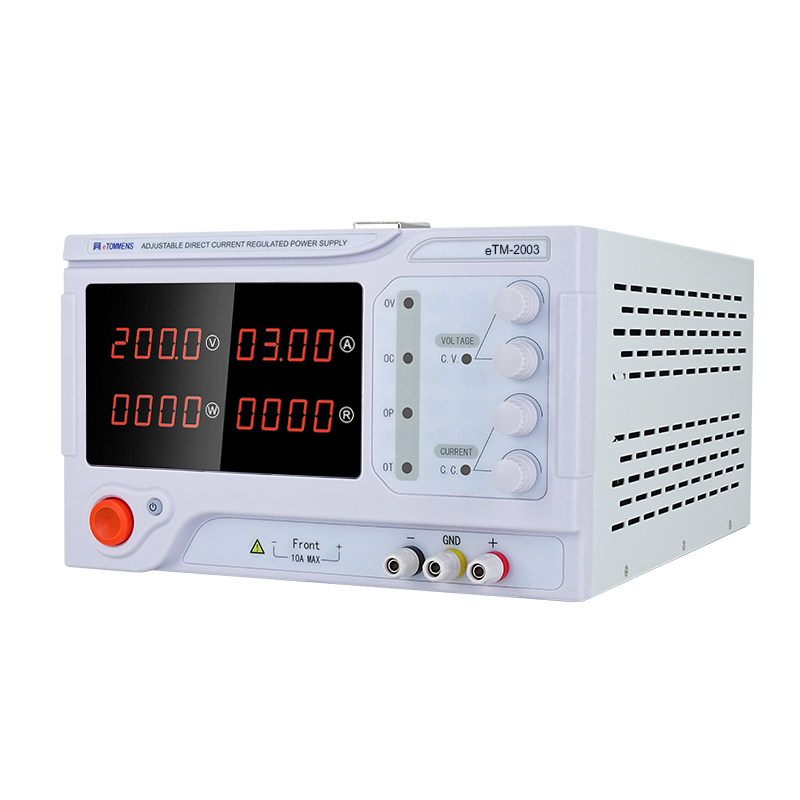

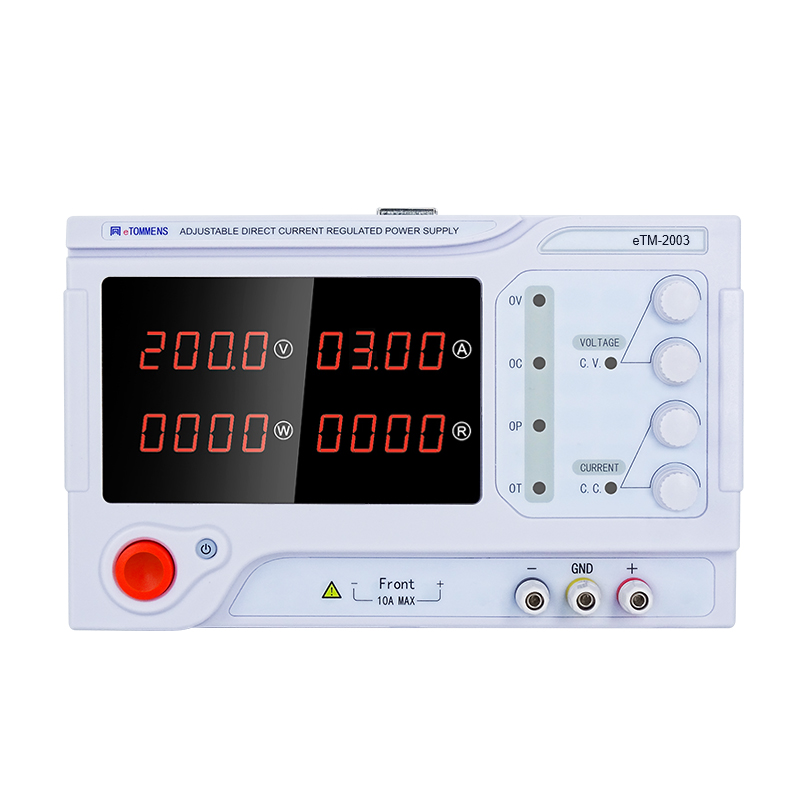

eTM-2003, 4-Kob High Power Variable Bench DC Power Supply 0-200V 0-3A with Encoder Adjustment Knob, Output Enable/Disable Button, Low Noise
Original price was: $ 869.00.$ 459.00Current price is: $ 459.00.
Voltage and current can be preconfigured
4-Digit LED display
ON/OFF unique switch
Rear SENSE compensation interface (optional)
Support powerful protection functions including overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: On/Off/Read
Low noise and low ripple
Automatic carry of the decimal point
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)
Intelligent temperature control fan
Standard configuration: power cord, certificate, output terminal, AC voltage 220V (110V optional below 1200W)
Additional information
Product Paramenters
Product Paramenters
| Model | eTM-2003 |
| Input Voltage | AC 220V + 10% (Optional: Fixed AC110V input; or AC110V/220V Toggle Input ) |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | Constant voltage value range: 0-200V, continuously adjustable |
| Output Current | Constant current value range: 0-3A, continuously adjustable |
| Way of Working | Automatic switching between constant voltage and constant current mode |
| Constant Current Indication | CC, red LED indicator |
| Constant Voltage Indication | CV, green LED indicator |
| Display Resolution | Four-digits display: voltage 100mV, current 10mA |
| Setting Accuracy | Voltage: ± 0.1V Current: ± 0.1A |
| Ripple & Noise | ≤1% (valid values) |
| Protective Function | Overvoltage Protection, Overcurrent Protection, Overpower Protection, Overtemperature Protection, and Short Circuit Protection |
| Working Environment | Temperature: 5-40 celsius Relative Humidity: <80% |
| Storage Environment | Temperature: 0-70 celsius Relative Humidity: <70% |
| Height above Sea Level | ≤2000m |
| Dimension | 330*250*155mm (Length*Width*Height)mm |
| Weight | 5KG |
| Category | 200V DC Power Supply, HV DC Power Supply |
Product Description
Product Description
