Current | 2A |
---|---|
Voltage | 150V |
Wattage | 0 ~ 300W |

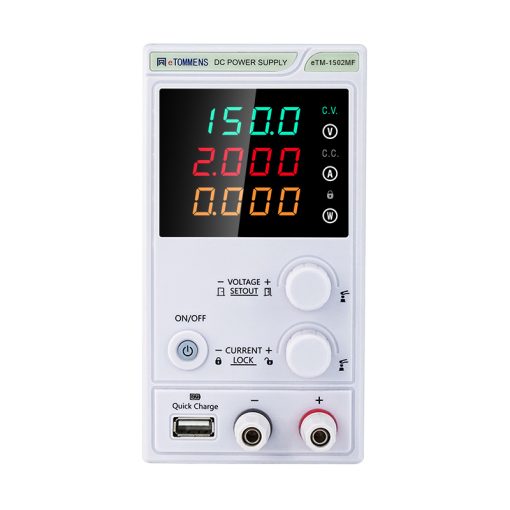

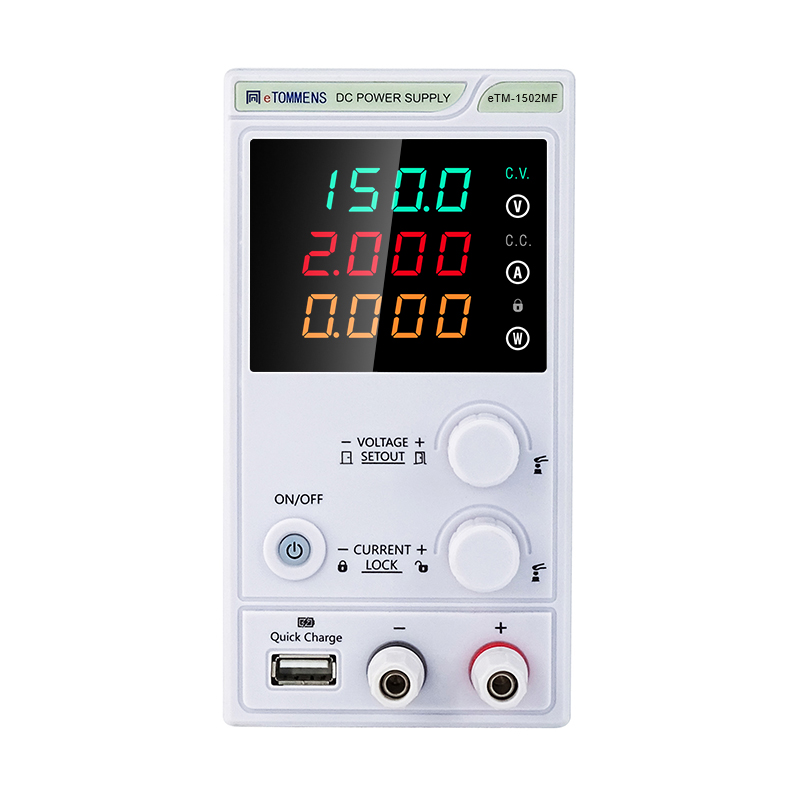

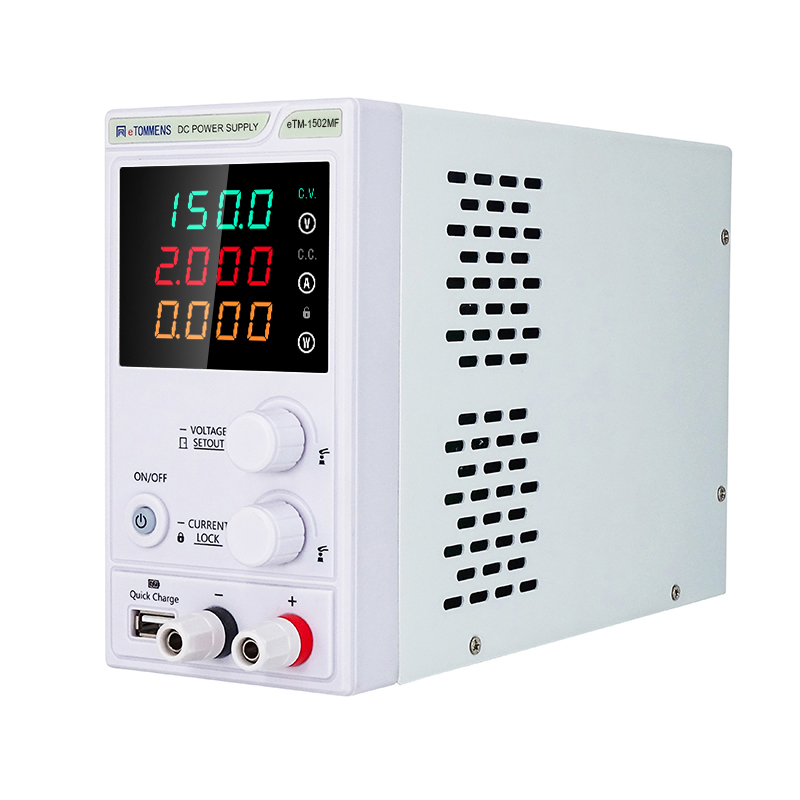

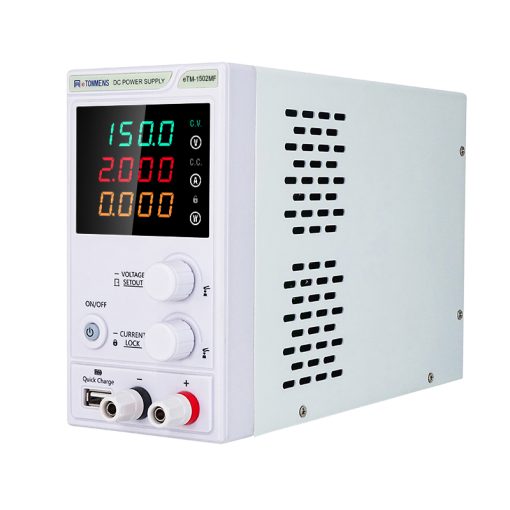

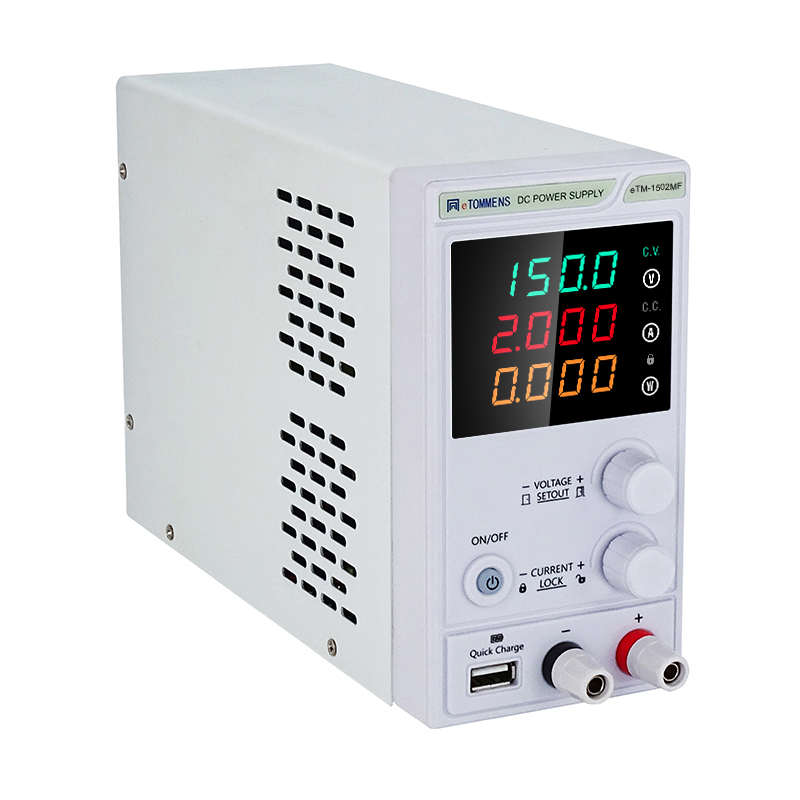

eTM-1502MF, 0-150V 0-2A Switching Regulated DC Bench Power Supply Mini with 4-Dight LED Display, Quick Charge USB Port, Output Switch
$ 659.00 Original price was: $ 659.00.$ 349.00Current price is: $ 349.00.
Voltage and current can be preconfigured
4-Digit LED display
ON/OFF unique switch
Support powerful protection functions including overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: On/Off/Read
Low noise and low ripple
Automatic carry of the decimal point
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)
Intelligent temperature control fan
Additional information
Product Paramenters
Product Paramenters
Model | eTM-1502MF |
Input Voltage | AC 220V + 10% (Optional: Fixed AC110V input; or AC110V/220V Toggle Input ) |
Input Frequency | 50Hz/60Hz |
Output Voltage | Constant voltage value range: 0-150V, continuously adjustable |
Output Current | Constant current value range: 0-2A, continuously adjustable |
Way of Working | Automatic switching between constant voltage and constant current mode |
Display Resolution | Four-digits display: voltage 10mV, current 1mA |
Setting Accuracy | Voltage: ≤0.1%+5digits Current: ≤0.2%+10digits |
Ripple & Noise | Voltage: ≤20mVrms Current: ≤20mArms |
Protective Function | Overvoltage Protection, Overcurrent Protection, Overpower Protection, Overtemperature Protection, and Short Circuit Protection |
Working Environment | Temperature: 0-40 celsius Relative Humidity: ≤80% |
Storage Environment | Temperature: -20-60 celsius Relative Humidity: ≤80% |
Height above Sea Level | ≤2000m |
Dimension | 80*150*230mm (Length*Width*Height)mm |
Weight | 2KG |
Category | 150V DC Power Supply, Small Adjustable Power Supply |
